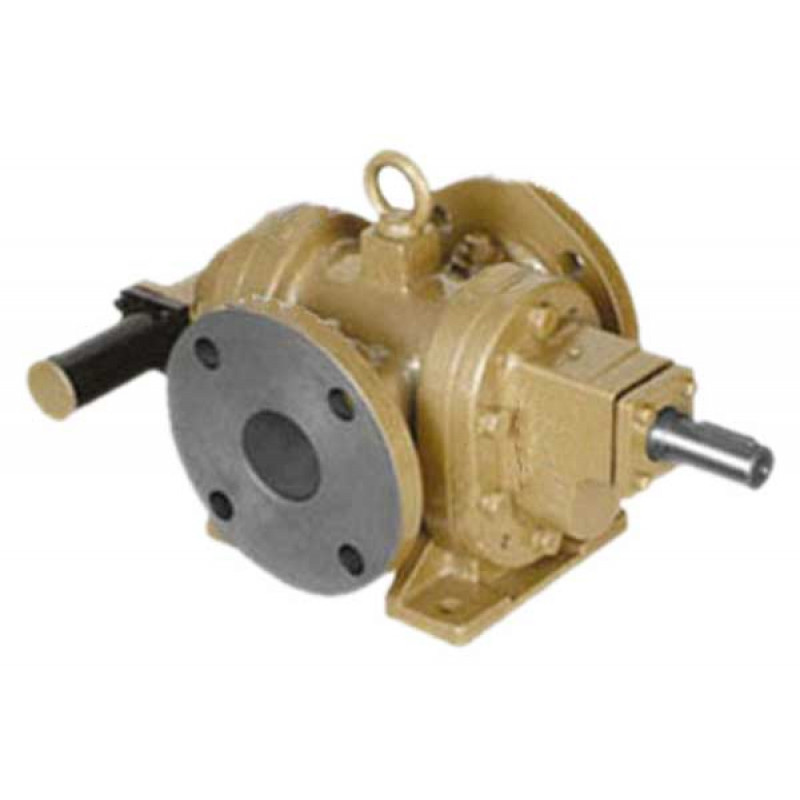

Industrial Bitumen Pump For High-Viscosity Fluids
Details of Bitumen Pump
Heavy-Duty Bitumen Pump for High-Temperature Fluid Transfer
Our company offers a reliable range of Bitumen Pumps specifically manufactured for handling high-temperature and high-viscosity materials such as bitumen, asphalt, and tar. These pumps are engineered to operate efficiently in continuous-duty environments, where maintaining the flow of heated media is critical. Designed with heating jackets and temperature-resistant seals, our pumps ensure uninterrupted performance in road construction, waterproofing, refinery, and chemical handling applications.
Durable Construction for Long-Term Operation
Our firm builds these pumps with heavy-duty casing materials such as cast iron and alloy steel, designed to withstand elevated operating temperatures. The shaft and rotor assembly are hardened to prevent wear from continuous exposure to abrasive thermal media. Each pump is fitted with a heating jacket (steam, oil, or electric) to ensure the product remains in a fluid condition during transfer or circulation.
Efficient Sealing and Mounting Configurations
We use high-grade mechanical seals and gland packing systems suitable for up to 200°C to prevent leakage. The pump can be supplied in both horizontal foot-mounted and flange-mounted configurations based on the client’s plant layout. Our company also provides direct-coupled or belt-driven options based on speed and flow rate requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pump Type | Rotary Gear / Screw / Vane |
| Flow Range | 50 – 1000 LPM |
| Max Temperature | Up to 200°C |
| Pressure Range | Up to 10 bar |
| Viscosity Range | 100 – 100,000 cSt |
| Casing Material | Cast Iron / Hardened Alloy Steel |
| Heating Jacket | Steam / Thermic Fluid / Electrical |
| Sealing Type | Mechanical Seal / Gland Packing |
| Mounting Type | Horizontal / Flange |
| Drive Options | Electric Motor / Belt / Gearbox Coupled |
| Power Supply | 3 Phase, 415V, 50Hz |
Used in Asphalt Plants, Road Machinery, and Tanker Systems
Our Bitumen Pump is widely used in hot mix plants, drum mix plants, bitumen emulsion units, boiler circuits, and road equipment. These products are used in diverse industrial applications where material consistency and flow rate are critical. The ability to handle dense and temperature-sensitive fluids makes our pump a reliable choice for contractors and industrial process engineers.
Trusted by Infrastructure and Refinery Contractors
Our firm supplies these pumps to OEMs, asphalt contractors, infrastructure firms, and chemical blending units. With fast delivery, after-sales support, and easy part availability, our company has become a preferred supplier in the bitumen handling segment.
